Output, consumption

• Voltage: 220–240 V
• Total connected load: 118 W
• Average power consumption: 38.6 kWh/year*
• Noise min./max. normal level: 54/67 dB*

Fan power *

• in extraction mode max. 340 m3/h
• in circulation mode max. 140 m3/h

* According to EU Regulation No. 65/2014 / Fan capacity according to EN 61591

Design, comfort

• Optional extraction or circulation mode (activated carbon filter required for circulation mode)
• For wall cabinet 60 cm
• Telescopic extension without panel
• Panel from original light strip from kitchen furniture manufacturer
• 3-level fan output controllable via slide switch
• Automatic switch-on and switch-off by pressing the moving filter surface
• Uniform, bright lighting with 2 x 4 W LED lamps
• Illuminance: 130 Lux
• Colour temperature 3,000 K
• Metallic grease filter, dishwasher-safe

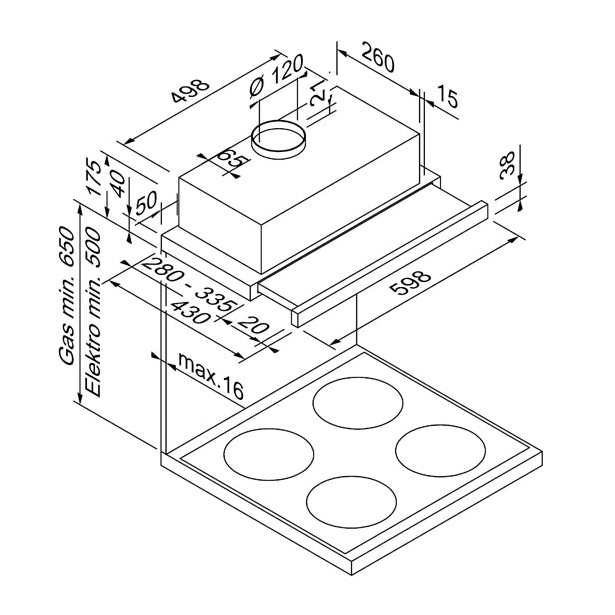

Dimensions H x W x D

• Appliance dimensions: 17.5 x 59.8 x 26.0 cm
