Output, consumption
- Voltage: 220–240 V
- Total connected load: 135 W
- Average power consumption: 72.5 kWh / year*
- Fan efficiency class: E*
- Light efficiency class: A*
- Grease filter efficiency class: C *
- Noise min. / max. Normal level: 53 / 64 dB*
Fan output max. Normal level:
- In extraction mode max. 380 m3/h
- In circulation mode max. 235 m3/h
* According to EU Regulation No. 65/2014 / fan capacity according to EN 61591
Design, comfort
- Stainless steel
- For wall installation above cooking zones
- Optional extraction or circulation mode (for circulation mode a carbon filter is required)
- 3-level fan output controllable via push buttons
- Uniform, bright lighting with 2 x 5 W LED lamps
- Illuminance: 900 Lux
- Colour temperature 3,000 K
- Metallic grease filter, dishwasher-safe
- Incl. exhaust air shaft

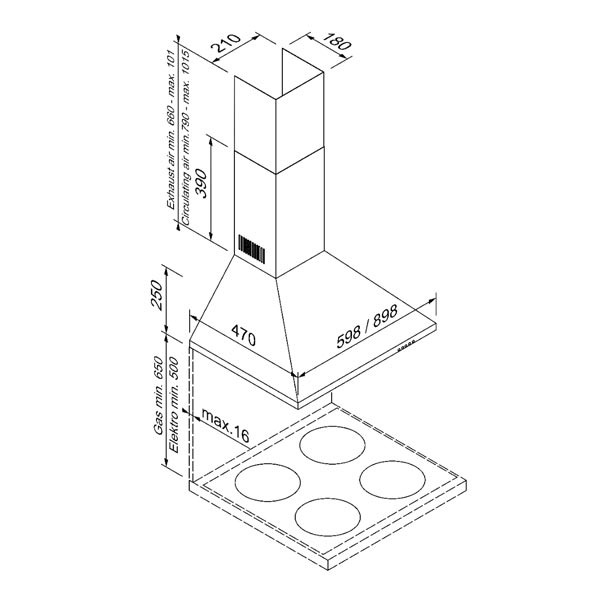

Dimensions H x W x D
- Appliance dimensions, extraction: 66.0 – 101.5, x 90.0 x 47.0 cm
- Appliance dimensions, circulation: 79.0 – 101.5, x 90.0 x 47.0 cm
Colour : Stainless Steel
Depth : 470mm
Height : 660-1015mm
Range : Blaupunkt
Type : Rangehoods
UOM : EA
Width : 900mm
