Features & Benefits

• Easy Cleaning: Stainless steel finish makes it easy to wipe off food splatters. Grease filters are dishwasher safe for quick cleaning.
• Vision Comfort: Warm lighting with wide downward illumination creates a comfortable work station.
• Hearing Comfort: Noise level as loud as washing machine, provides extraction without too much noise inconvenience.
• Controls: Push button controls located on the base of the appliance.
• Stylish: The appliance is integrated to the kitchen, making it more elegant.
• Energy Efficient: Class B efficiency with average yearly consumption of 44.7kWh.
• Programs: Extraction mode with 3 power levels. Recirculation mode (requires carbon filter)
• Energy Source: Electricity

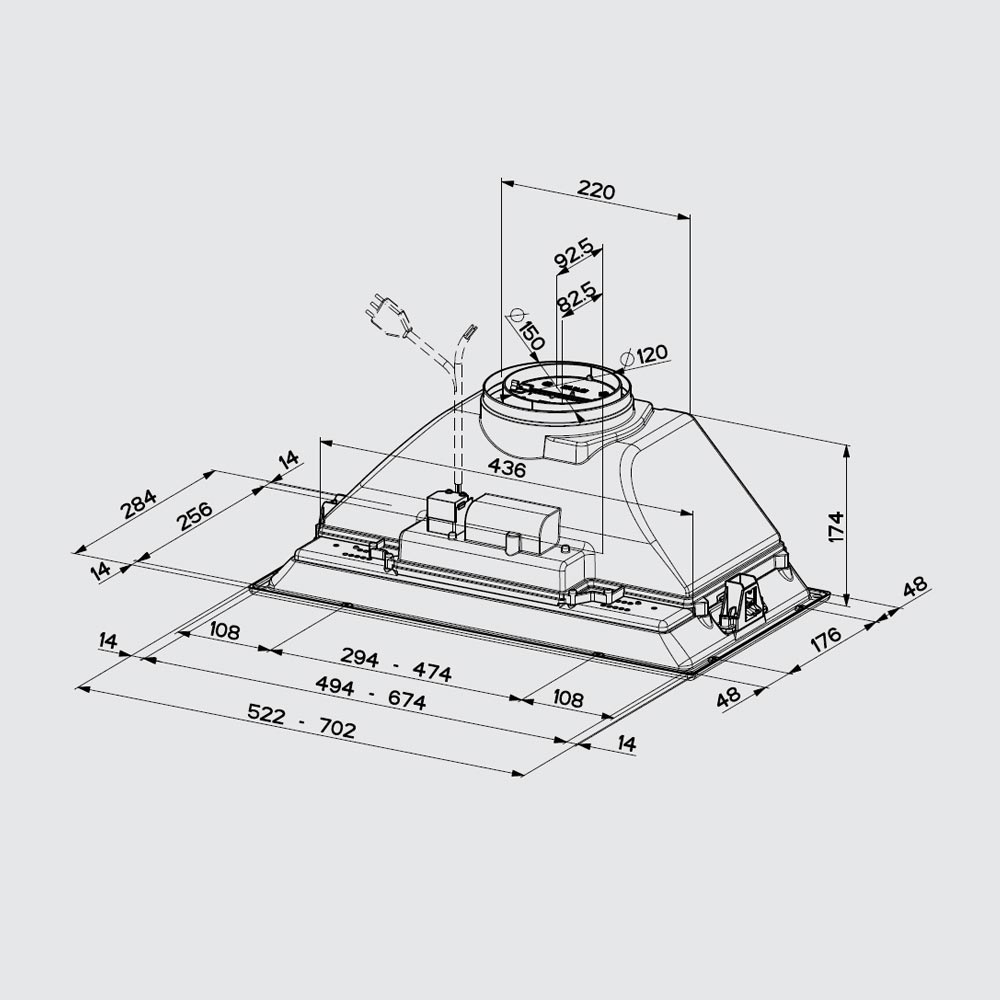

Dimensions

• Appliance: H214 x W522 x D286mm

Material

• Grease filter: Aluminium
• Surface: Stainless Steel

Finish

• Stainless steel

Grease Filter

• Dishwasher safe: Yes
• Type: Cassette
• Odour filter: Optional

Weight

• Net: 7kg

Type

• Built-in

Control

• Electronic

Lighting

• 4W LED lamps x 2
• Temperature: 3,000K
• Illuminance: 100 lux

Extraction

• Direction: Upward
• Power: 120-390m3/h

Noise

• Minimum: 54dB
• Maximum: 70dB

Connection

• Voltage: 220-240 V
• Total connected load: 118 W
• Frequency: 50 Hz
• Installation: Built-in
• Energy Source: Electric
• Gross weight: 7kg
• Approval certificates: CE, VDE
• Required distance from induction hob: 500mm
• Required distance from gas hob: 650mm
• Appliance dimensions: 214 x 522 x 286mm
• Installation dimension: 305 x 605 x 370mm
• Exhaust air outlet area: 150 x 120mm
• Height of the unit without chimney: 214mm
• Length of connection cable: 150cm
• Connection type: Australian
• Position of fan: Motor in the housing
• Flow direction: Upwards
• Maximum sound power: 70dB
• Number of lamps: 2 LED lamps
• Total power of lamps: 8W
• Connection Type: Hardwired
