Features & Benefits

• Easy Cleaning: Stainless steel finish for easy cleaning. Grease filters are dishwasher safe for easy cleaning.
• Vision Comfort: Neutral colour lighting with wide downward illumination help with creating a perfect cooking experience.
• Controls: Soft button controls located on the base of the appliance.
• Stylish: Fully integrated for maximum, stylish kitchen presentation.
• Programs: Extraction mode with 3 power levels, Recirculation mode (requires carbon filter).
• Energy Source: Electric.

Specification

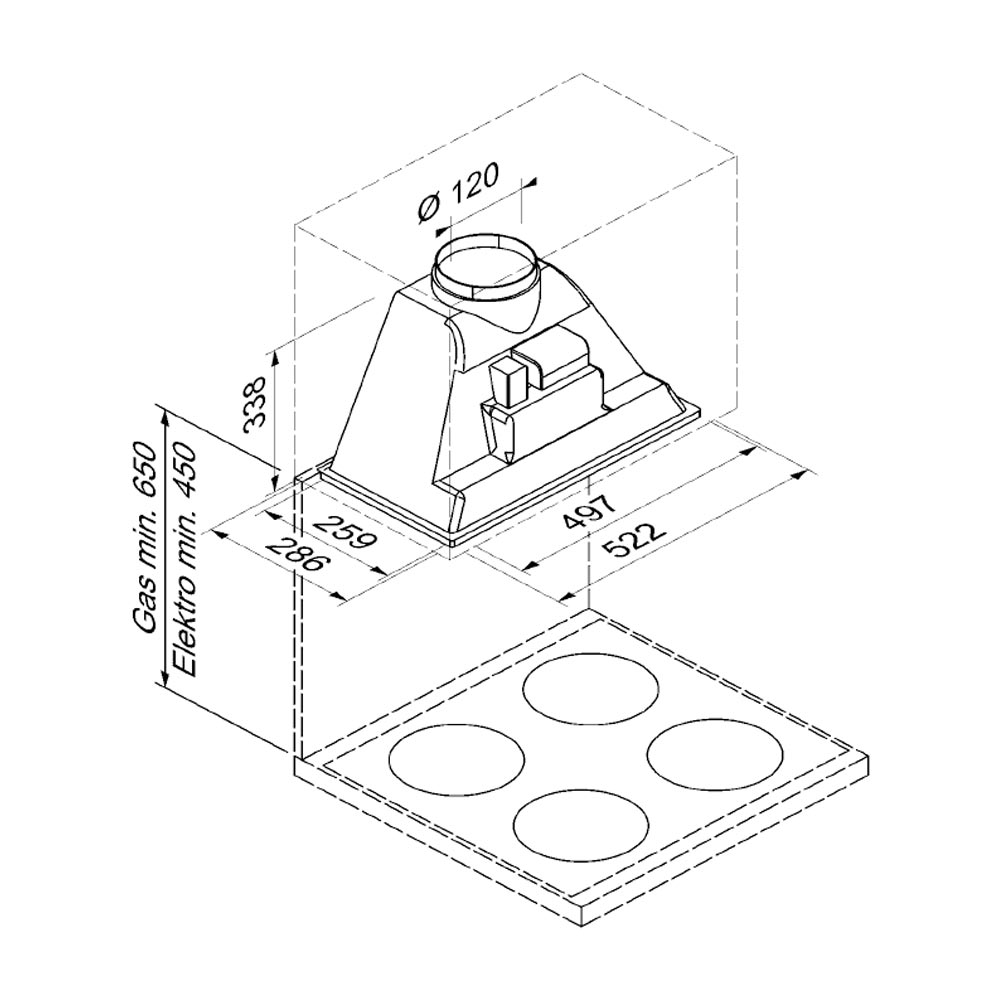

• Dimensions: Appliance: H337.5 x W522 x D286mm
• Material: Grease filter: Aluminium, Surface: Stainless Steel
• Finish: Black
• Grease Filter: Dishwasher safe: Yes, Odour filter: Optional
• Weight: Net: 4.4kg
• Type: Built-in
• Control: Push button
• Lighting: 4W LED lamps x 2, Temperature: 4,000K, Illuminance: 100 lux
• Extraction: Direction: Upward, Power: 250-590m3/h
• Noise: Minimum: 47dB, Maximum: 63dB

Connection

• Voltage: 220-240 V
• Total connected load: 160 W
• Frequency: 50 Hz
• Installation: Built-in
• Energy Source: Electric
• Approval certificates: RCM
• Required distance from induction hob: 450mm
• Required distance from gas hob: 650mm
• Appliance dimensions: 337.5 x 522 x 286 mm
• Packaging dimension: 425 x 605 x 365 mm
• Exhaust air outlet area: 150/120mm
• Height of the unit without chimney: 337.5mm
• Length of connection cable: 150cm
• Connection type: Australian
• Position of fan: Motor in the housing
• Housing material: Plastic
• Flow direction: Upwards
• Maximum sound power: 63dB
• Number of lamps: 2 LED lamps
• Total power of lamps: 8W
