Output, consumption

• Voltage: 220–240 V
• Total connected load: 254 W
• Average power consumption: 96.1 kWh / year*
• Fan efficiency class: A*
• Light efficiency class: A*
• Grease filter efficiency class: C*
• Noise min. / max. Normal level: 57 / 71 dB*

Fan output max. Normal level / Intensive level*:

• In extraction mode 600 m3/h / 680 m3/h
• In circulation mode 290 m3/h / 340 m3/h

* According to EU Regulation No. 65/2014 / fan capacity according to EN 61591

Design, comfort

• Fan module with white glass
• Optional extraction or circulation mode (starter set required for circulation mode)
• Soft push buttons (3 power levels + 1 intensive level)
• Intensive levels with automatic reset
• High, fine-tunable fan output via electronic control
• Edge suction
• Uniform, bright lighting with 2 x 1 W LED lamps
• Illuminance: 230 Lux
• Colour temperature 3,000 K
• Metallic grease filter, dishwasher-safe

Special accessories

• 5Z 9100X1: Activated carbon filter

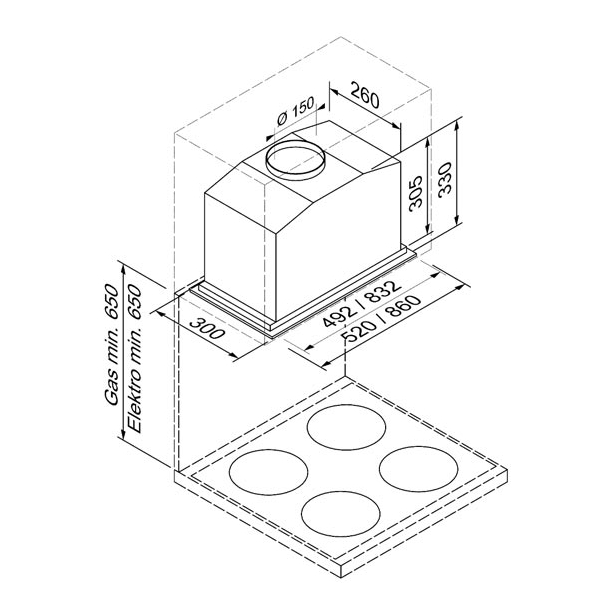

Dimensions H x W x D

• Appliance dimensions, extraction: 33 x 52.0 x 30 cm
• Appliance dimensions, circulation: 33 x 52.0 x 30 cm
