Output, consumption

• Voltage: 220–240 V
• Total connected load: 225.4 W
• Average power consumption: 44 kWh / year*
• Noise min./max. normal level: 48 / 58 dB*

Fan output max. normal level / intensive level*:

• in extraction mode 560 m3 / h /632 m3 / h
• in circulation mode 394 m3/h / 445 m3/h

* According to EU Regulation No. 65/2014 / Fan capacity according to EN 61591

Design, comfort

• Stainless steel
• For wall installation above cooking zones
• Multi Control
• Optional extraction or circulation mode (for circulation mode a carbon filter is required)
• Electronic control
• 4-level fan output (3 power levels + 1 intensive level) controllable via Multi Control
• Intensive levels with automatic reset
• Powerful and quiet blower
• Uniform, bright lighting with 2 x 2.7 W LED modules
• Optional extendible Multi Control function: LED light with adjustable brightness and colour temperature
• Heat sensor for automatic mode
• Colour temperature 4,000 K preset
• Metallic grease filter, dishwasher-safe
• Incl. exhaust air shaft

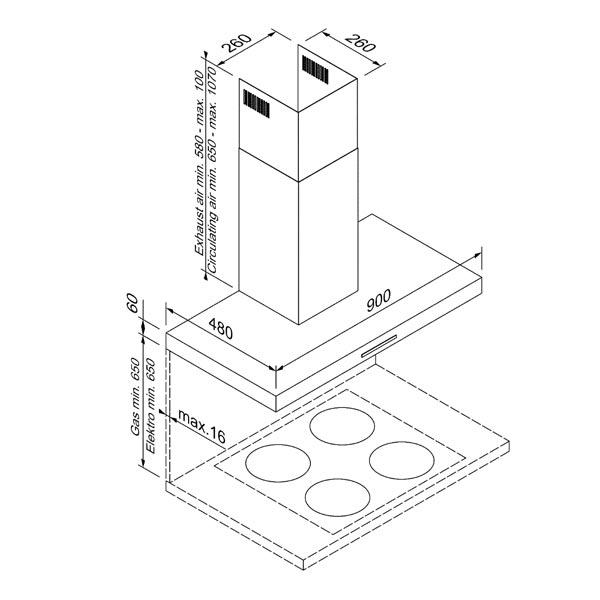

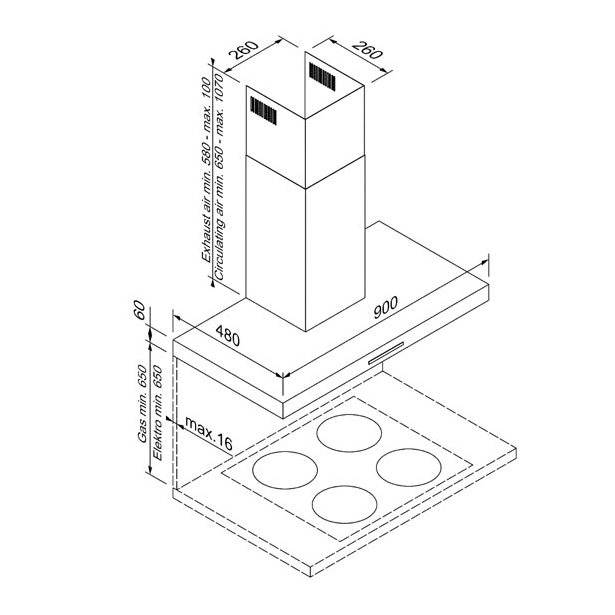

Dimension H x W x D

• Appliance dimensions, extraction: 64.0 – 106.0 x 90.0 x 48.0 cm
• Appliance dimensions, circulation: 71.0 – 113.0 x 90.0 x 48.0 cm
