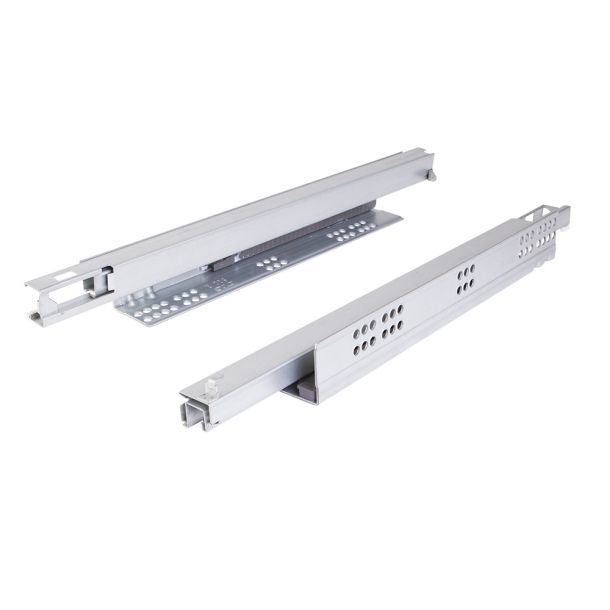

DTC MAGIC MOVE SLIDE (FULL EXTENSION, INCLUDES 3D BRACKETS) 250MM
SKU
DTCTS10250H
CAN ALSO BE PURCHASED IN A BOX QUANTITY OF 10, OR PALLET QUANTITY OF 360
- Full extension, fully synchronized, fully concealed runner
- 40kg load capacity
- Zinc plated finish
- Drawer system self locks once positioned on slide
- Soft closing without additional parts
- Bottom mounting
- 3D adjustable for a better retro-fitting of drawers:
- Up/down adjustment 0-2.5 mm
- Left/right adjustment ± 1.5 mm
- Depth adjustment 0-3mm
- Includes 3D front brackets with runners
- Maximum drawer side thickness: 16mm
- No rebate required to accommodate runner
Colour : Zinc Plated
Length : 250mm
Range : DTC
Type : Drawer Runners
UOM : SET
